Feed pellet machine

  • Ring die pellet machine

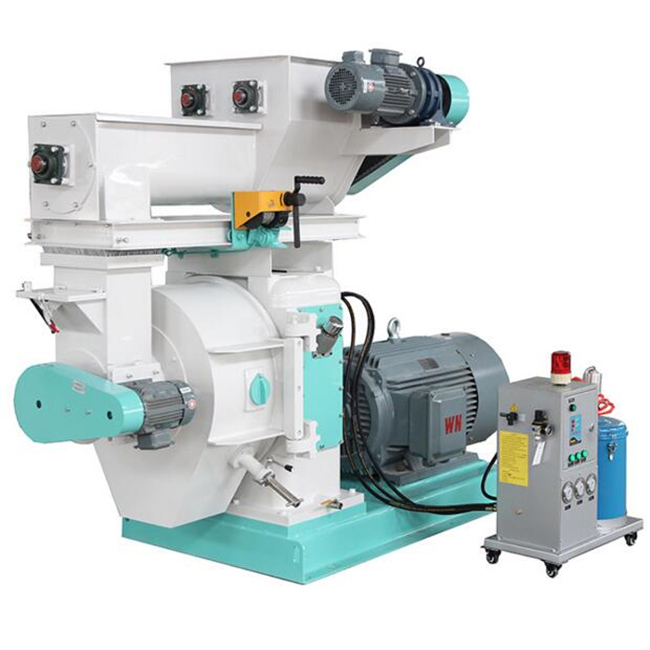

Ring die pellet machine

  • Ring Die Feed Pellet machines adopt high precision gear driven, The machine is equipped with overload protection device, give full consideration to protect the using main motor. The screw feeder speed can be adjustable, suitable for all wood, sawdust ,biomass material
  • INQUIRY

Feed pellet mill,feed pellet machine,feed pellet making machine,feed machinery, feed pellets granulating machine, feed pelleting machine,feed pelletizer equipment, fodder granulating machine, feed pelletizer, feed pelletizing equipment, feed granulator, feed pelletizing machine, feed equipment,

Feed pellet mill,feed pellet machine,feed pellet making machine,feed machinery, feed pellets granulating machine, feed pelleting machine,feed pelletizer equipment, fodder granulating machine, feed pelletizer, feed pelletizing equipment, feed granulator, feed pelletizing machine, feed equipment, feed processing machine, feed producing machine, feed pellet maker machine,feed pellet manufacturing machine

1.Advantage

1.1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.

1.2.Stainless steel conditioner makes even retention and sufficient cooking effect.

1.3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.

1.4.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.

1.5.The ring die& roller assemblies are quickly assembled and disassembled.

1.6.There are many steam adding inlets. Raw material is heated more fully. Conditioner effect is better.

1.7.Configurable oil circulating cooling system, in order to enhance the cooling and lubrication effect of the main drive system of bearing. The device can work smoothly for a long time.

1.8.Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.

1.9.Applicable for all kinds of high grade animal/livestock/aqua feed. Single, double or three layers of conditioner is optional.

2.Technical Parameters

Model

Main Power
(kw)

Capacity
(t/h)

Feeder Power
(kw)

Conditioner Power
(kw)

Die Diameter
(mm)

Feed Pellet Size
(mm)

SZLH250

22

1-2

0.75

1.1

250

1.2-18

SZLH320

37

2-5

1.1

2.2

320

1.2-18

SZLH350

55

2-7

1.5

3.0

350

1.2-18

SZLH400

75/90

3-12

2.2

5.5

400

1.2-18

SZLH420

90/110

3-14

2.2

5.5

420

1.2-18

SZLH508

110/132/160

4-20

2.2

7.5

508

1.2-18

SZLH558

132/160/200

4-22

2.2

7.5

572

1.2-18

SZLH678

200/220/250

8-28

3.0

11.0

678

1.2-18

SZLH768

250/280/315

10-35

3.0

11.0

768

1.2-18
