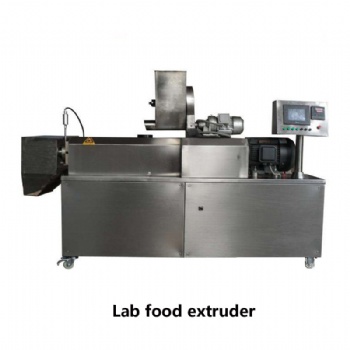

Twin Screw Laboratory Extruder

  • Lab Twin Screw Test Extruder Main features:
    1. High strength screw
    2. Segmented barrel
    3. Intelligent temperature-control and wide adjustment range
    4. Mold opening pressure measurement
    5. Wide range of screw rotation speed adjustment
    6. Centralized control of machine
    7. Approach production facilities
    8. Simple operation
    9. Powerful, strong simulation
    10. Simpler maintenance and low cost
  • INQUIRY

Twin Screw Laboratory Extruder Features:

Lab twin-screw extruder SLG32 is special for universities, research institutes and large and medium-sized enterprises engaged in various extrusions, extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to cereals; potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simply of parameters adjustment, test data accurate, easy maintenance.

lab screw extruder.jpg

Technical Parameters:

Parameter




1Motor power5KW14Control modeCollect control
2Motor speedFrequency control15Range pressure0~30MPa
3Screw diameter3016Precision pressure1MPa
4Screw center distance26mm17Test point3
5Screw material38CrMoAl18 Lubricate modeInner cyc
6Rotate speed range0~500rpm19Feed rate0.18KW
7Screw formBricks form20Feed controlFrequency control
8Pathway rate11.6/   12.7/ 2321Cutter rate0.25KW
9Rotate speed range0~550rpm22Cutter controlFrequency control
10Temperature controlElectric heat and water cooler23Cutter power0.25KW
11Test point424Shape1.8x1x1.4(m)
12Temperature rangeNormal ~300 degree25Output8-12kg/h
13Temperature-1degree --- +1degree26
