Product Description

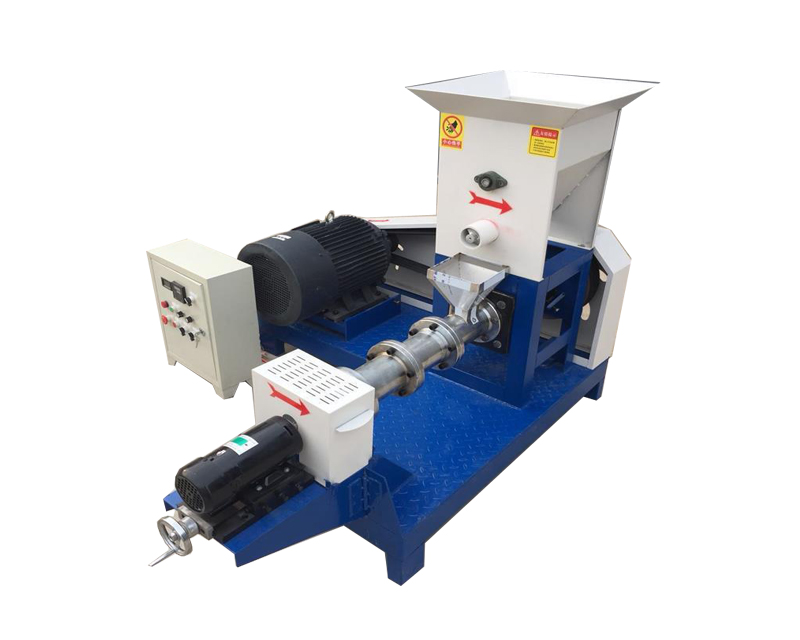

1.Floating Fish Feed Extruding Machine Information

*This Single phase fish pellet machine can process the corn, soybean(soybean cake), etc. Put the materials into the extruder can produce different feed pellet.



*The feed pellet is in different shape, special taste,eutrophy, organization delicate and suit dog, cat, fish,birds,rabbit,shrimp and so on different pet food. This machine suits professional farm, middle and small feed plant and research institute.



*The Single phase fish pellet machine for the pellet feed extrusion machine, can produce a variety of flower shape, and can according to the requirements of the mold, product discharging mouth is equipped with rotary cutting device of frequency control of motor speed, the blade rotation speed can be adjusted arbitrarily, to control the cutting speed and length.



*Use thisSingle phase fish pellet machine production expanded feed particles, forming neat and smooth, floating over 12 hours don't sink water, polluting the water, sterilization to reduce fish disease.



Single phase fish pellet machine



2.Fish food pellet smaple

We can change the extruder mould to make different size feed pellet.

Single phase fish pellet machine

1. Our Single phase fish pellet machine is of single screw design.
2. The pellets extruded from pellet mill is about 80℃ and moisture content is 18%-20%, so you should equip a dryer and cooler if the capacity is more than 500kg/h. While for small capacity, you can complete the drying and cooling with a cooler.
3. We provide technical formula for making floating fish feed pellets after placing order.
4. We send extra easy wear parts for free including two sleeves, one screw, one cutting knife and three die mould.

5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

Single phase fish pellet machine

4.Single phase fish pellet machine parameter:



Model

Capacity

kg/h

Main Power

Feeding Power

Screw diameter

Cutter power

Pellet size

FLD-40

40-60kg/h

7.5kw

0.4kw

φ40mm

0.4kw

1-12mm

FLD-50

60-80kg/h

11kw

0.4kw

Φ50mm

0.4kw

1-12mm

FLD-60

100-150kg/h

15kw

0.4kw

Φ60mm

0.4kw

1-12mm

FLD-70

180-250kg/h

18.5kw

0.4kw

Φ70mm

0.4kw

1-12mm

FLD-80

300-350kg/h

22kw

0.4kw

Φ80mm

0.6kw

1-12mm

FLD-90

400-450kg/h

37kw

1.1kw

Φ90mm

0.6kw

1-12mm

FLD-120

500-700kg/h

55kw

1.1kw

Φ120mm

1.5kw

1-12mm

FLD-135

800-1000kg/h

75kw

1.1kw

Φ133mm

2.2kw

1-12mm

FLD-160

1200-1500kg/h

90kw

1.5kw

Φ155mm

2.2kw

1-12mm

FLD-200

1800-2000kg/h

132kw

1.5kw

Φ195mm

3.0kw

1-12mm

Packaging & Shipping

Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.

DELIVERY TIME: For stock type, we can send within 48hrs after confirming order.

For customized type , delivery date need to be negotiated before taking order.

Single phase fish pellet machine

Company Information

 Jinan FLD Machinery Co.,ltd as the subsidiary company of state-owned group belong attach government enterprise.

Single phase fish pellet machine

We specialize in the research and development, manufacturing and sales of food machinery equipment. We have professional technicians and foreign trade service teams with many years of experience in the mechanical industry. We not only have first-class quality, perfect service, but also have global advanced production equipment and technology. We welcome new and old customers from home and abroad to contact us for future business relationship to achieve mutual success!
